MESH

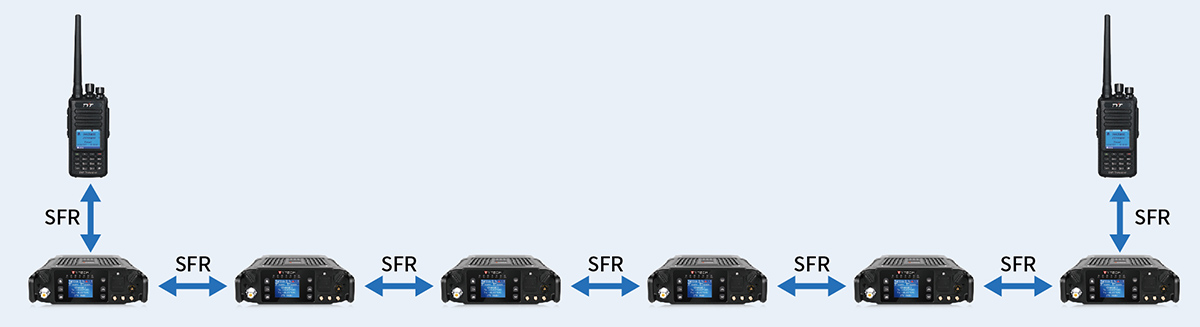

MESH in chain, DMR SFR repeaters are to use one timeslot to receive signals and the other to transmit at the same frequency to connect with each other to extend radio coverage.

IP Connect:

From the single site DMR conventional system for low-rise buildings to IP Multi-site system for high-rise build-ings, the MD-5700 delivers a powerful and stable signal to every corner of your workplace. It can also intercon-nect with our MD-7500, building a tailored network to meet your variable requirements.

Large Capacity Battery:

It can be equipped with a 16Ah large-capacity battery for use in outdoor scenarios, which can provide up to 9 hours of power supply under the RF power output of 10 W. Even if it is used at 50% duty cycle at 20 W full power, it can still guarantee 4 hours of uninterrupted work protection, providing you with a lasting uninter-rupted communication guarantee.

Support bigger current battery to install outside, can be powered by external power adapter, more flexible to install and use.

User Scenario:

It is the new generation business-ready digital repeater designed to expand the communication range of your DMR radios. High performance and high reliability, the repeater ensures consistent, reliable, seamless voice and data communications your team need most. It is a top pick for hotels, office buildings, supermarkets, industrial parks, and more. Compact and lightweight, the repeater can be flexibly mounted to the wall or carried on the back by tailored accessories, uncompromising with on-site installation conditions. The rugged structure makes the repeater stand up to harsh environments. The repeater allows the communication connection anywhere you need.

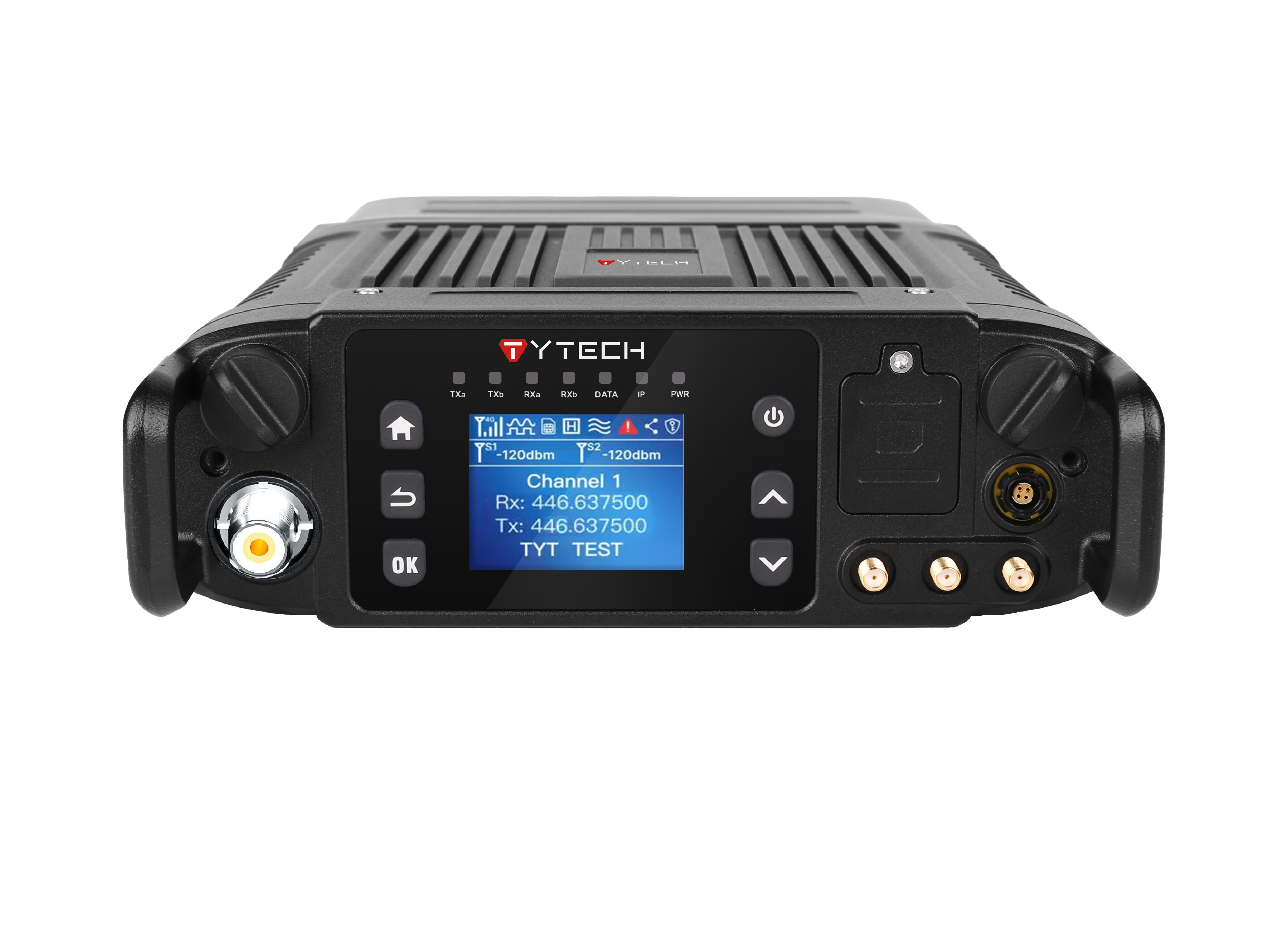

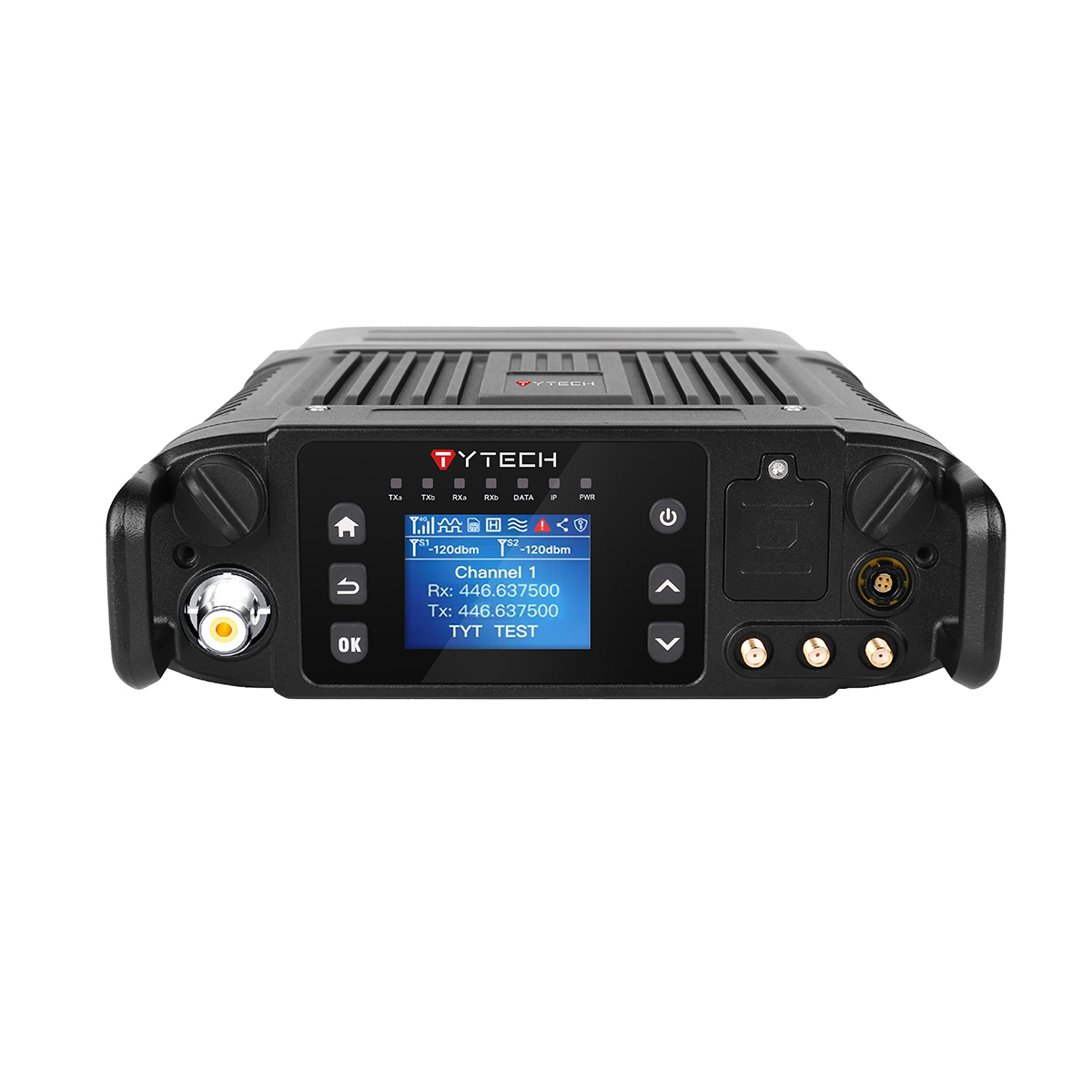

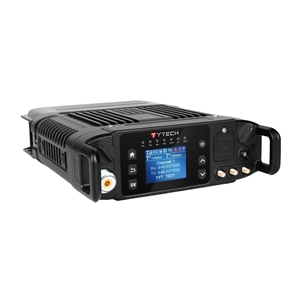

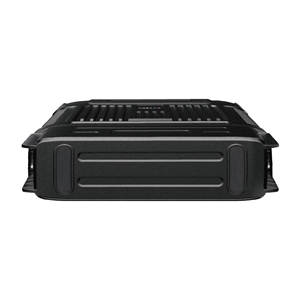

DMR SFR Portable Repeater

- Single-frequency repeater function, greatly saving frequency resources.

- Integrated design, compact and lightweight.

- 2.4-inch high-definition LCD display and large button, more convenient to operate.

- Support Android function, can install related application software (Optional).

- Cross-mode repeater between POC and DMR mode or between POC and analog mode (Optional).

- Meet the MIL standard design, can suitable for various working environments.

- IP67 waterproof

Main Functions

- SFR

- 2.4 inch LCD display

- IP67 waterproof

- Emergency call

- IP connect

- Recording

- MIL standard design

- Message

- TOT

- Encryption

- Squelch

- CTCSS/DCS

- Man down

- Channel switch

- Can work as a mobile radio with hand microphone

- 25W ultra high output power

- Output power adjust

- GPS

- GIS (Dispatcher Software)

- Group call

- Single call

- 16000mAh large capacity battery

•

  Antenna

•

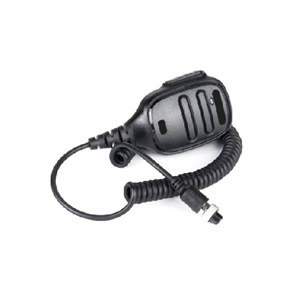

  Handheld Microphone

•

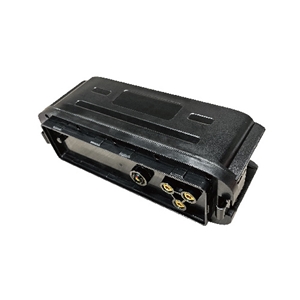

  Battery

•

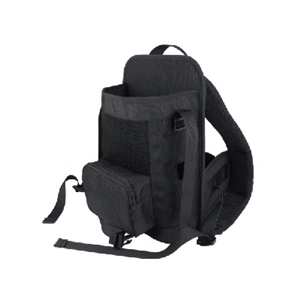

  BackPack

•

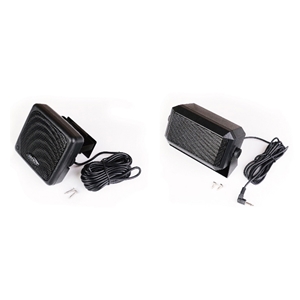

  External Communication Speaker
