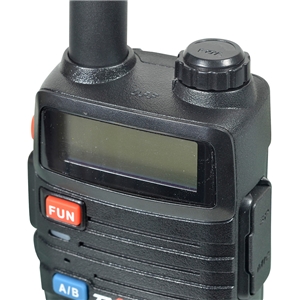

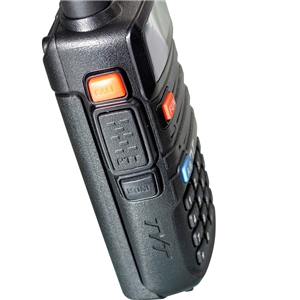

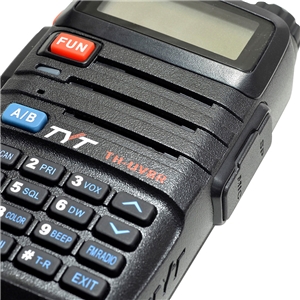

TH-UV8R

Product Name： TH-UV8R

Enquiry Back

TH-UV8R, a dual band, dual display and dual standby two -way radio, adopts hi-technology and novel design, bringing you a stable, reliable and efficient communication service. It is especially convenient for staff of Property Management and Entertainment.

TH0-UV8R adopts humanism deign, making it smart in shape, advanced in function and flexible in operation. It will satisfy you with the compact size and reasonable price.

Whisper function, with this function you don’t need to speak loudly to the speaker, you partner can still hear you clearly.
Item number TH-UV8R
General
Frequency Range 136-174MHZ   400-520MHZ ; 136-174MHZ   245-246MHZ ; 245-246MHZ   400-520MHZ
Frequency Stability ±2.5ppm
Channel No. 128*2
Operating Voltage DC 7.2V(Rechargeable li-ion battery)
Antenna High gain antenna
Antenna Impedance 50Ω
Mode of operation Simple or semi-duplex
Dimension（W x H x D） 110*58*32 mm
Transmitter
Output power VHF:5W / 1W   UHF:4W / 0.5W
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation ≤5kHz  / ≤2.5kHz
Adjacent Ch. power  ≥65dB/  ≥60dB
Spurious Radiation ＜7μW
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5 kHz±0.1kHz  / 0.4±0.1kHz
Intermediation sensitivity 1-10mV
Intermediation distortion ＜5%
 Receiver
RF Sensitivity -122dBm(12dB SINAD)
Audio power 1W
Audio Distortion <5%
Blocking ≥85dB
Intermediation ≥60dB ≥55dB
Selectivity ≥65dB ≥60dB
Spurious Rejection ≥65dB
